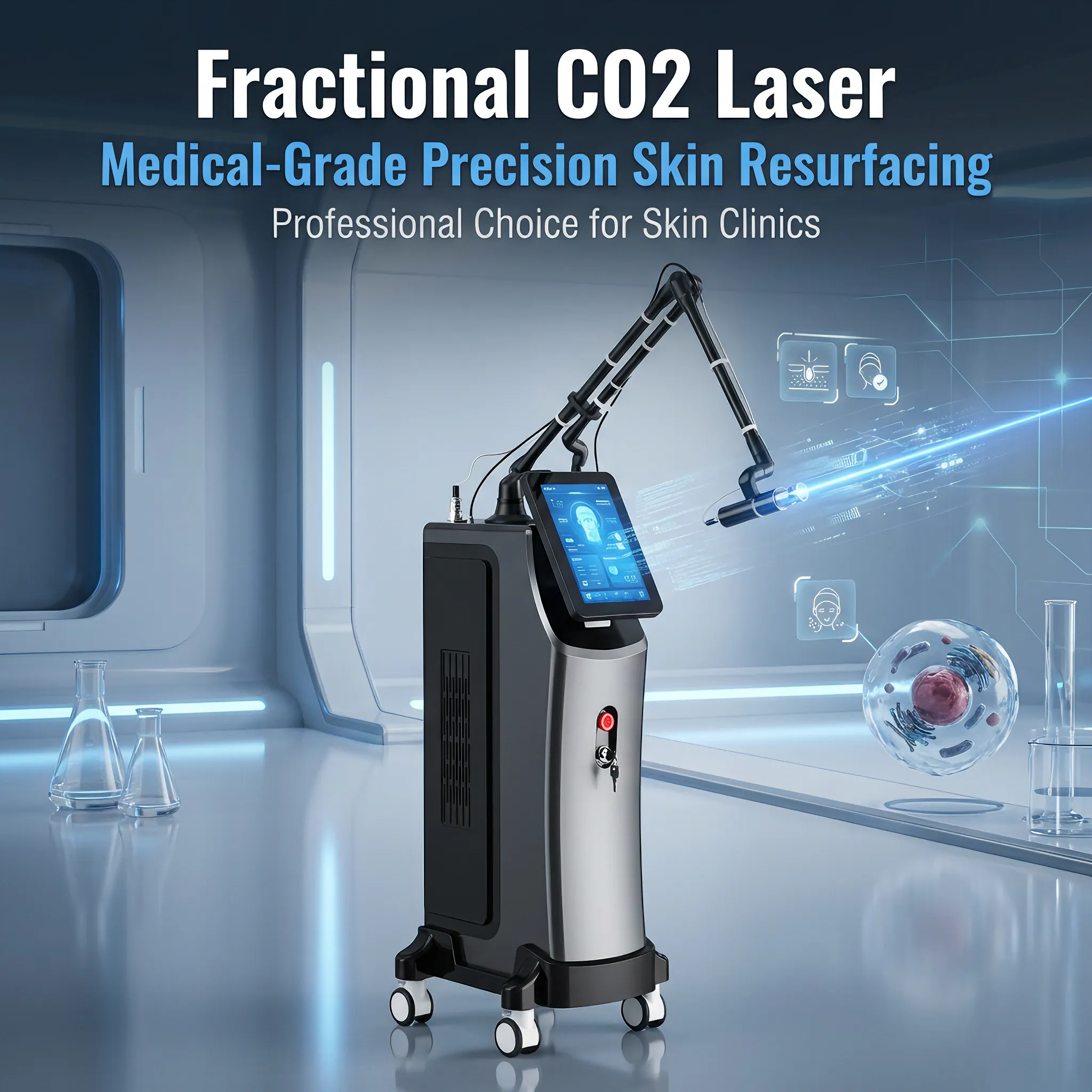

360-Degree Arm CO2 Fractional Laser – Flexible Positioning for Skin & Intimate Care

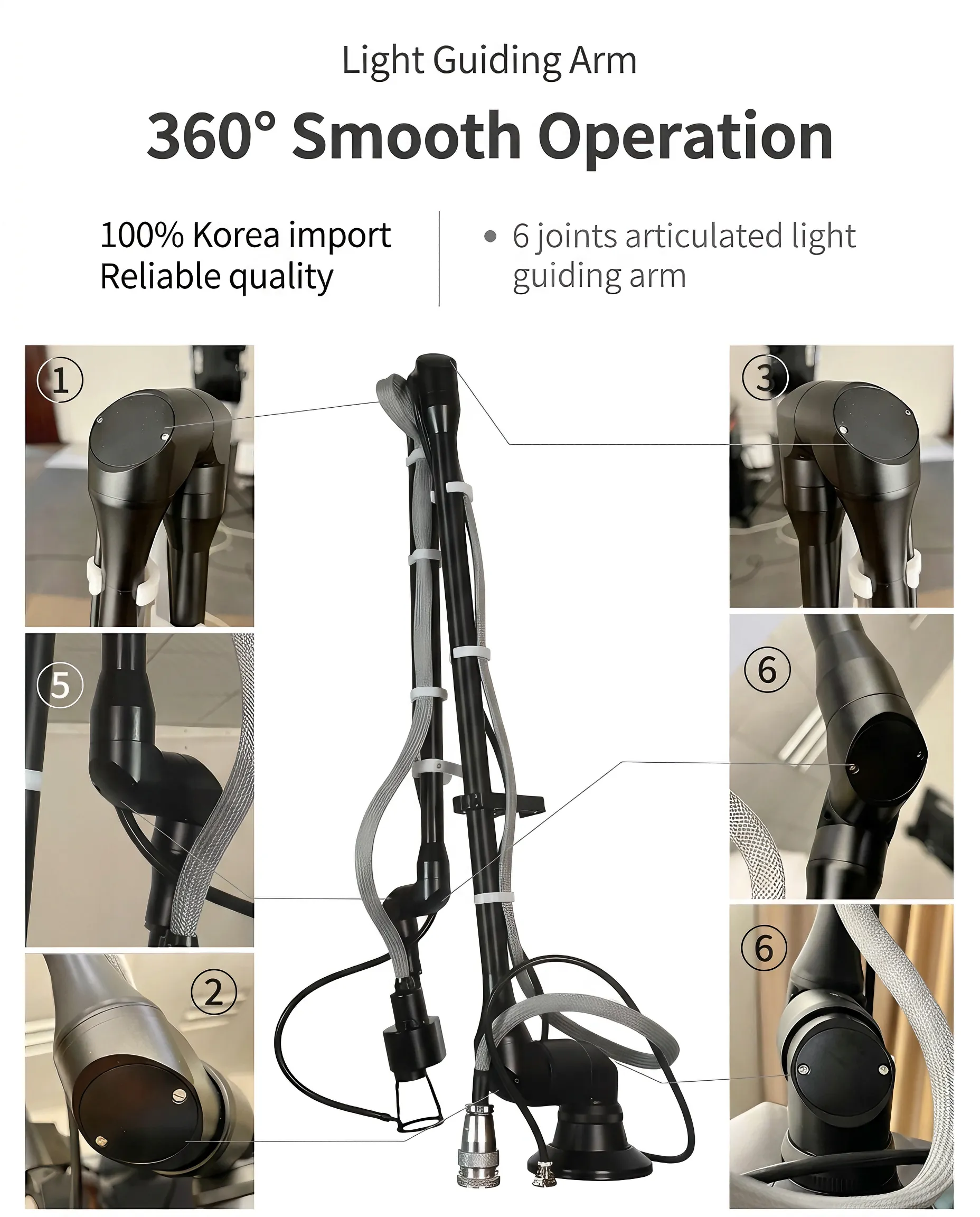

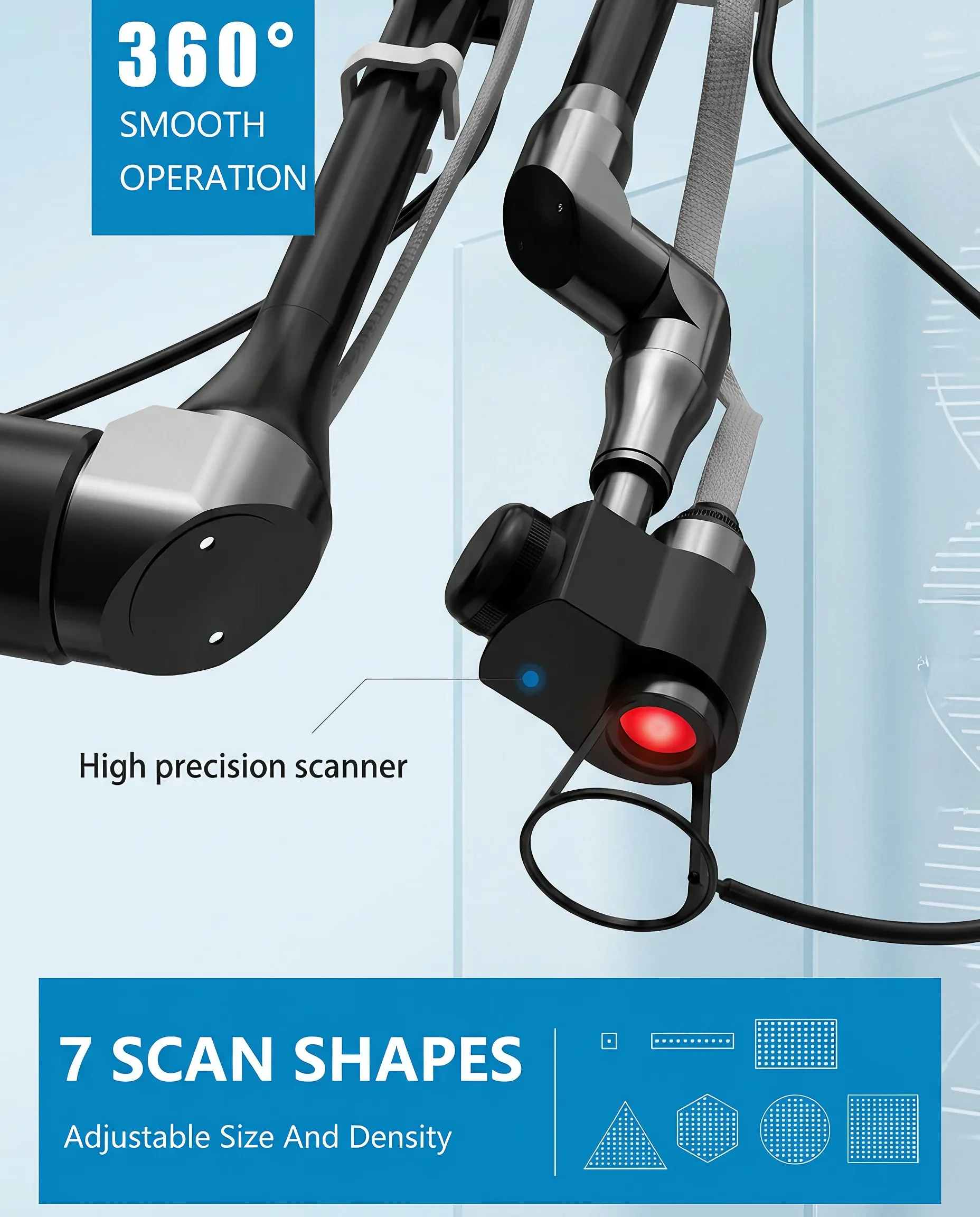

The delivery system is presented as a six-joint articulated light-guiding arm with smooth 360-degree positioning. This construction helps the operator move the scanner around the treatment area while the mobile base supports placement within a professional treatment room.

Arm movement improves positioning flexibility, but it does not determine clinical suitability or treatment outcome. Installation clearance, balancing, maintenance and operating procedures should follow the manual supplied with the exact model.

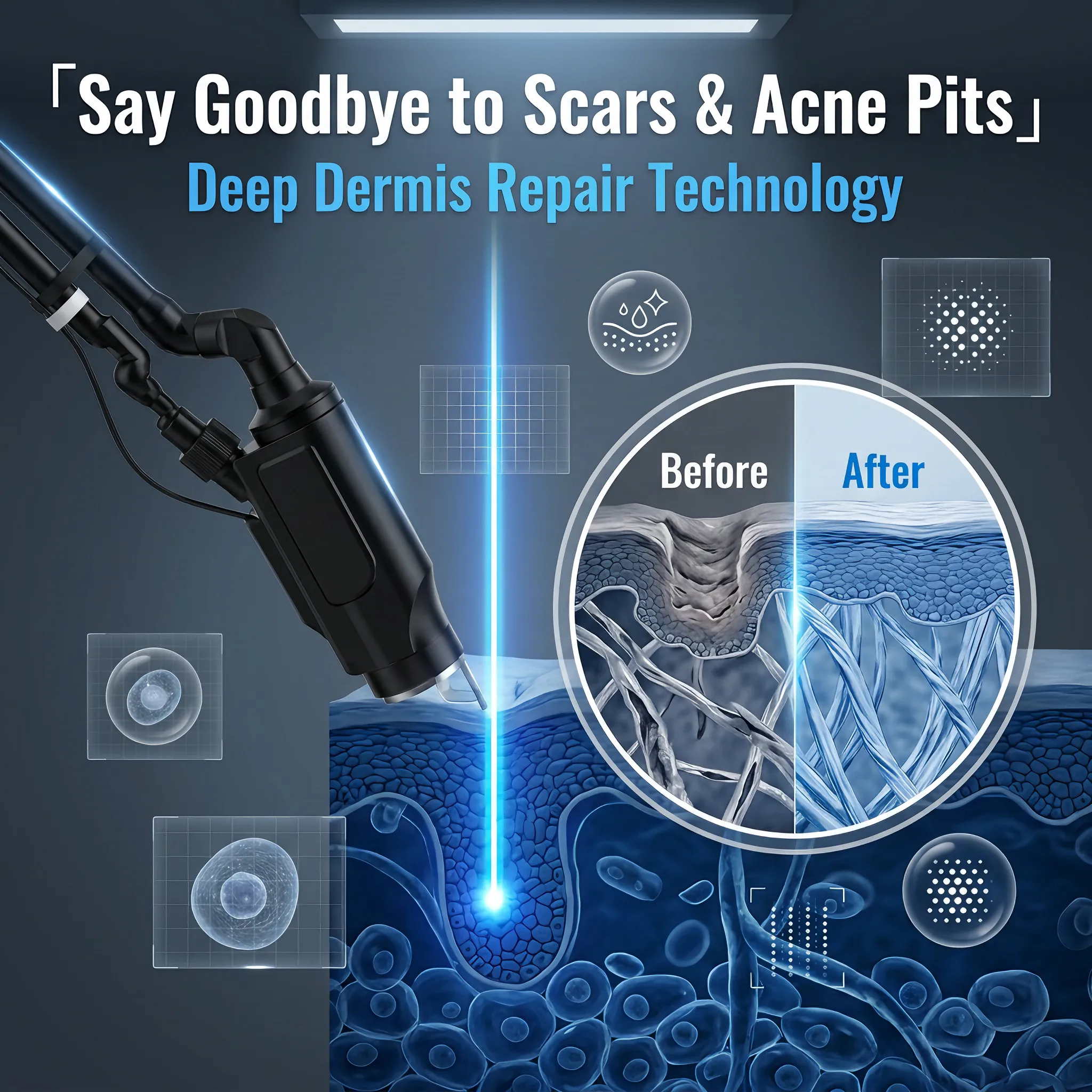

The supplied materials identify a 10.6μm CO2 wavelength, equivalent to 10,600nm. In fractional mode, the scanner divides the treatment area into an array of small treatment zones, leaving surrounding areas untreated as part of the planned tissue-response and recovery process.

Buyers who want to understand this wavelength, fractional delivery and tissue interaction can review the
fractional CO2 technology
overview when comparing professional systems.

The product images also identify a visible 650nm, 2mW red diode aiming beam. Its purpose is to help indicate the target position of the otherwise invisible CO2 treatment beam.

The scanner displays seven geometric pattern options with adjustable size and density. Different pattern shapes allow the operator to adapt coverage to treatment zones with different outlines.

Pattern availability is confirmed visually, while the complete scan-size, spacing, density and energy ranges should be checked in the model-specific technical specification.

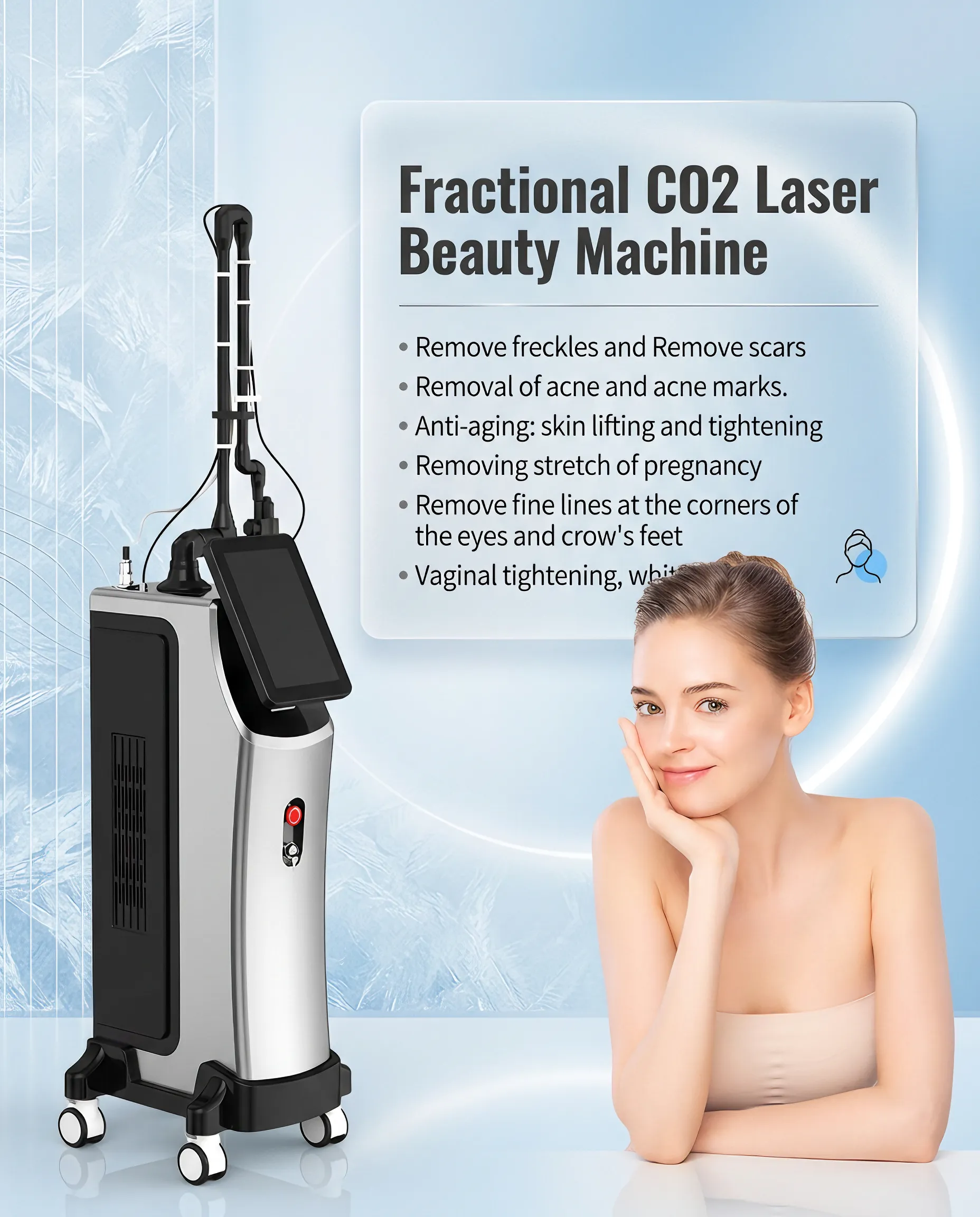

The product materials present the fractional mode for professional consultations involving uneven texture, the appearance of acne scars, fine lines, visible pigmentation, surgical scars and stretch marks.

Before-and-after images illustrate the applications promoted in the product materials; they are not guaranteed outcomes. Results vary with patient selection, settings, treatment course and aftercare.

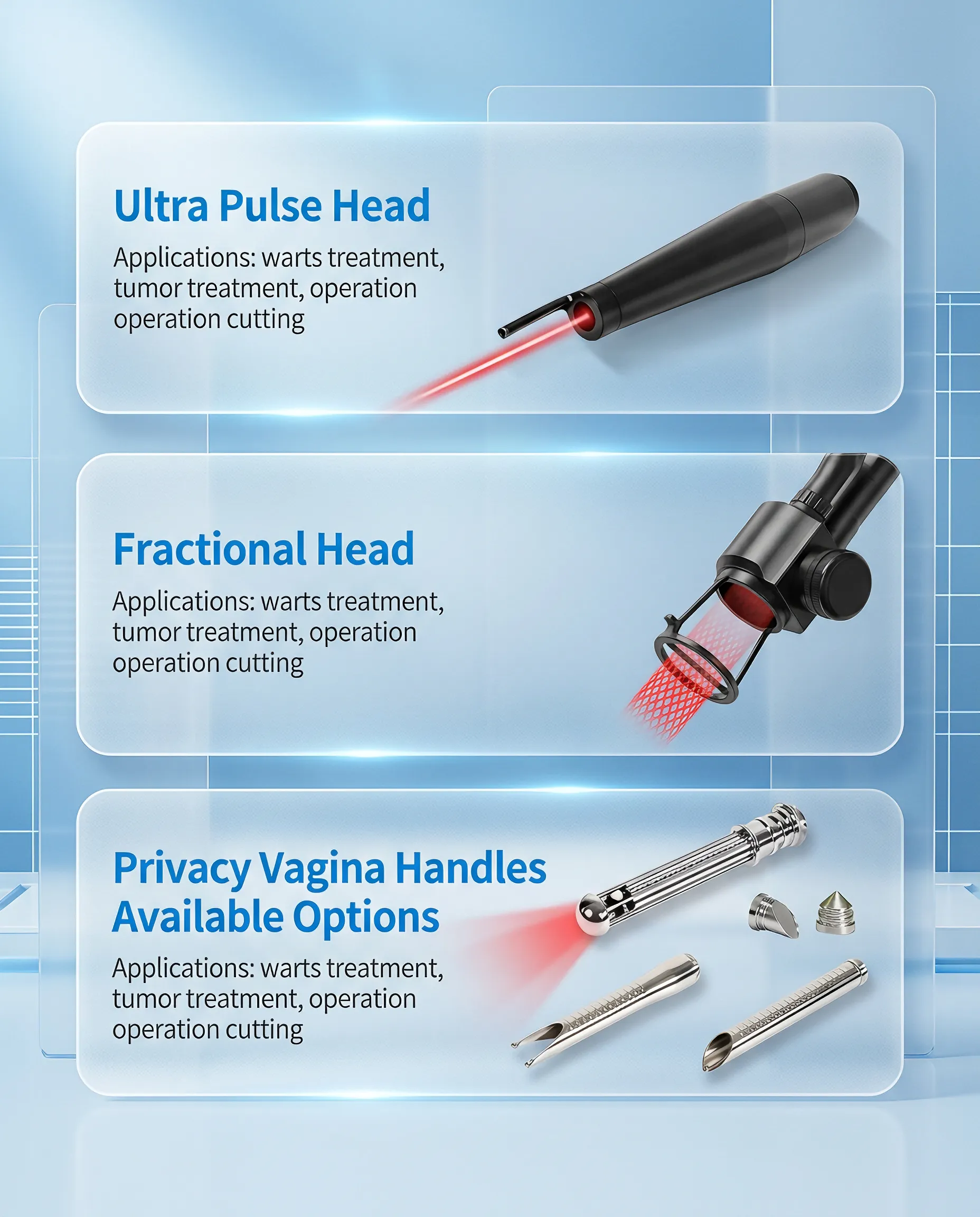

A separate ultra-pulse head is shown alongside the fractional scanner. The supplied materials present it for professional cutting and selected lesion-related procedures.

Lesions require appropriate clinical assessment before intervention. Cutting, ablation or lesion-related procedures must be limited to qualified and legally authorized medical professionals, with attention to diagnosis, pathology requirements, plume control, local regulations and the exact device registration.

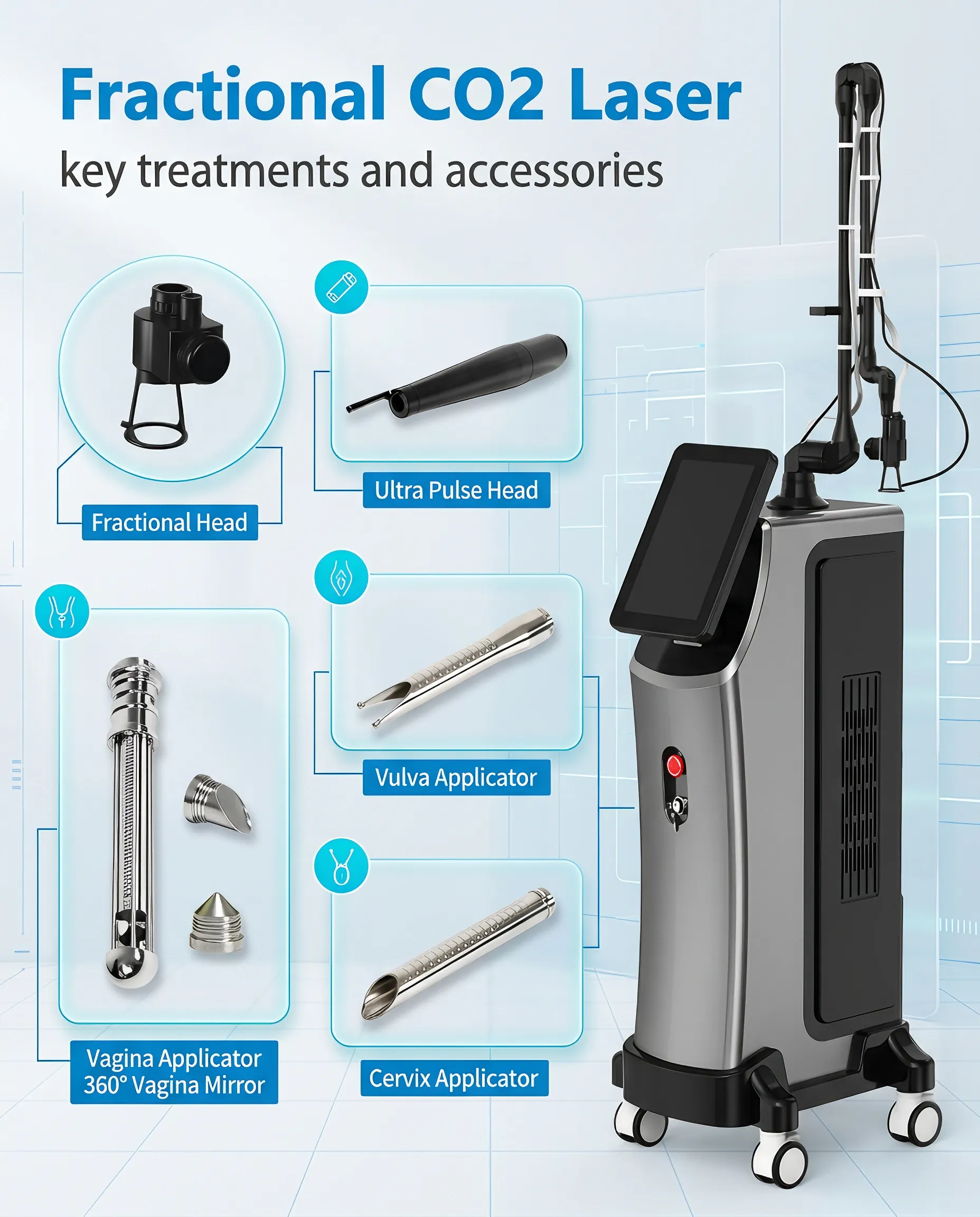

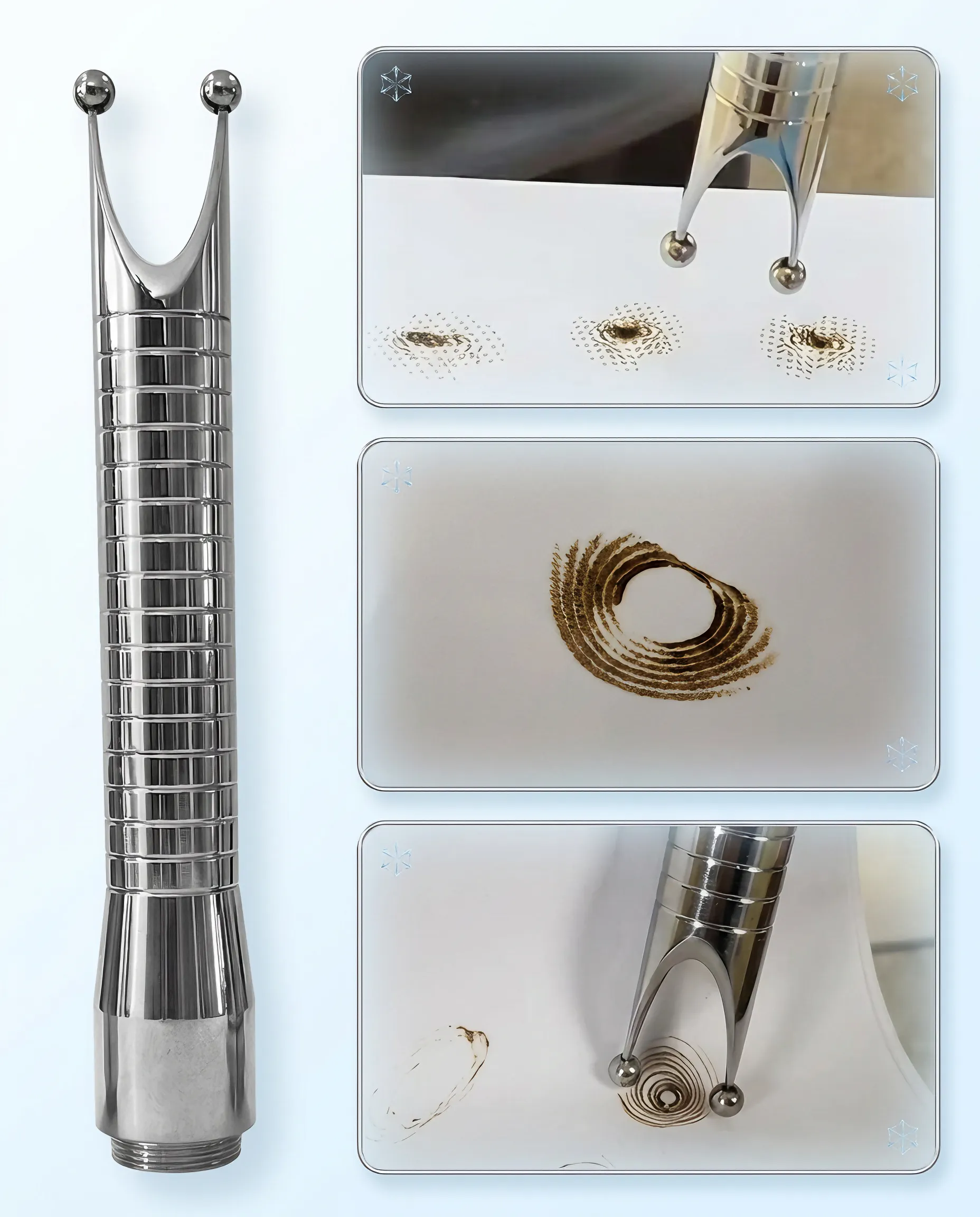

The displayed configuration includes a vaginal applicator with a 360-degree mirror attachment, a vulva applicator and a cervix applicator. These accessories create separate intimate-care workflows from the fractional skin and ultra-pulse heads.

This multi-application configuration may be relevant to clinics seeking broader service coverage. Buyers evaluating a
fractional laser for clinics
should compare operator requirements, room workflow, training and the exact included accessories.

Intimate-care procedures require individual assessment, informed consent, application-specific training and appropriate aftercare. This description does not promise a fixed degree of tightening, whitening or moisture improvement.

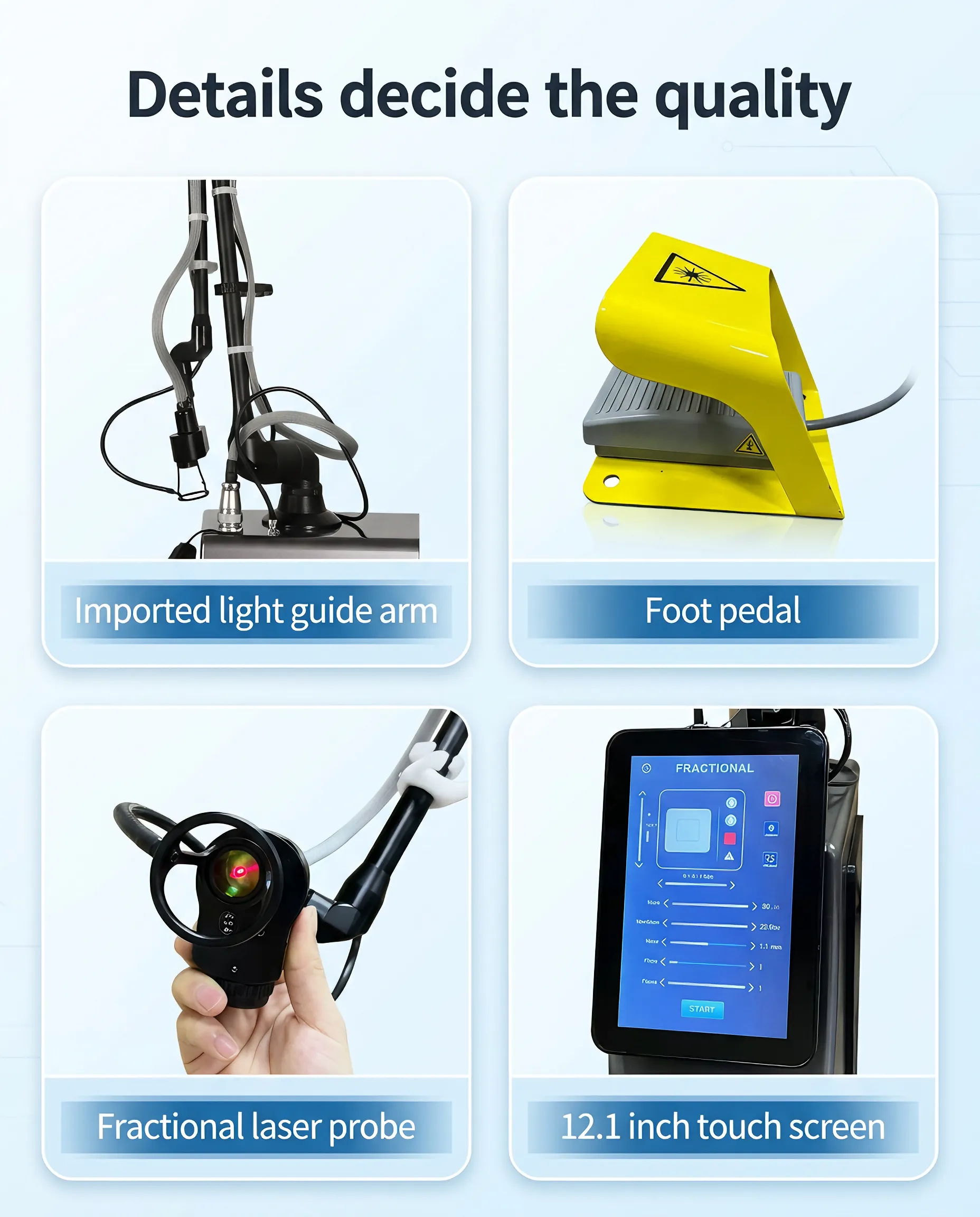

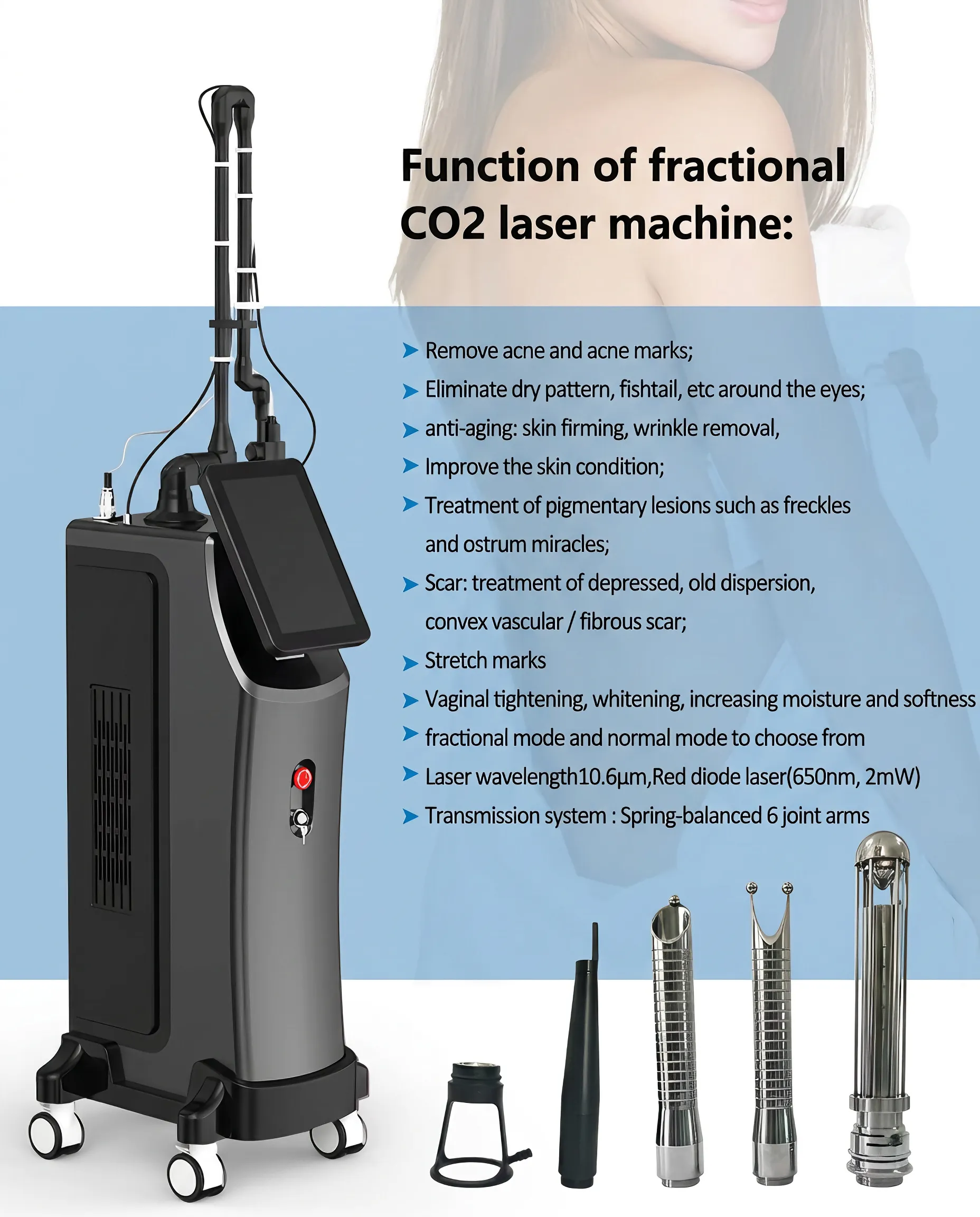

• 12.1-inch touchscreen:
  large interface shown for mode and setting adjustment.
• Mobile floor-standing base:
  fitted with wheels for treatment-room positioning.
• Six-joint articulated arm:
  supports scanner positioning around the treatment zone.
• Foot pedal:
  shown as part of the operator-control setup.
• Key switch:
  provides controlled access to system operation.
• Emergency-stop control:
  provides a visible rapid-shutdown mechanism.

The touchscreen size and visible hardware are confirmed by the supplied images. Electrical requirements, physical dimensions, net weight and installation clearance should be confirmed before ordering.

Product images confirm the visible design and principal feature categories but do not replace a complete specification, packing list or sales agreement. Before purchasing, request written confirmation of:

• Exact model number and complete technical specification
• Laser-source and pulse-setting ranges
• All seven scan-pattern adjustment ranges
• Included fractional, ultra-pulse and intimate-care accessories
• Electrical, cooling, installation and maintenance requirements
• Operator manual and application-specific training
• Certification documents applicable to the exact ordered model
• Written warranty and after-sales service terms

What distinguishes this model from other floor-standing systems?

Its product-level positioning focuses on the six-joint, 360-degree light-guiding arm together with the 12.1-inch touchscreen and multi-application accessory set.

Are all pictured applicators included?

The images show fractional, ultra-pulse, vaginal, vulva and cervix accessories. Confirm the final included configuration in the quotation and packing list.

Does the system guarantee the pictured results?

No. The images illustrate promoted applications. Treatment response varies and should never be guaranteed.

Is the light-guiding arm confirmed as Korean-made?

The marketing image describes it as imported, but origin documentation was not supplied here. Request written component-origin information if this affects procurement.

Are certification and warranty included?

Request product-specific certification documents and written warranty terms for the exact model and destination market before ordering.
